CADILLAC -- MODEL "THIRTY"
Click to supersize

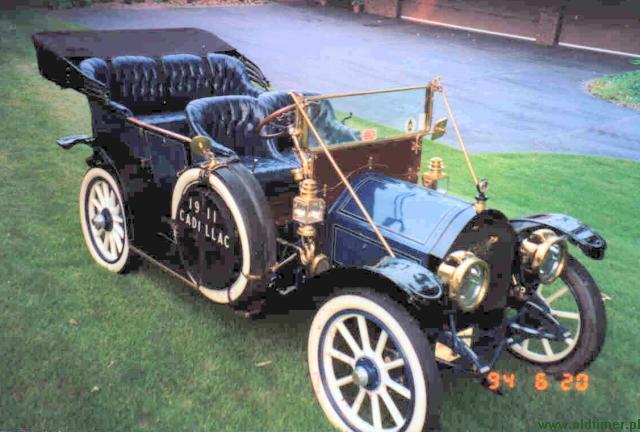

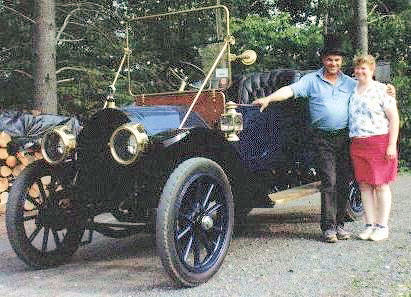

1911 Cadillac Touring
Same as 1910 except:
Price
- Basic price increased to $1700.
Bodies
- First front (foreward) door on an open Cadillac body
- left side only on Foredoor Touring and Torpedo.
- Torpedo body all steel on wood frame.
- Limo body interchangeable with Touring and Coupe body interchangeable with Demi-tonneau (an inducement to year round motoring).
Chassis
- Wheelbase lengthened to 2946mm
- Brake drum diameter increased to 355.6mm
- Double dropped frame.
Drive line
- Rear axle changed to Timken full floating, with torsion arm and two universal joints in the drive shaft.
Engine
- Bore increased to 114.3mm
- Schebler Model L carburetor used.
- Bosch high tension magneto and Delco single coil system used for dual ignition.
Click to supersize

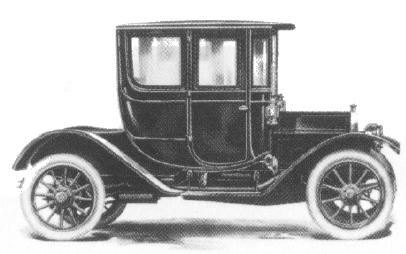

1911 Cadillac Thirty
1911 Cadillac Model Thirty
I.D. DATA
Serial numbers on plate on dash (with engine no.) Engine numbers were stamped on top surface of crankcase -- in front of and to the left of number one (front) cylinder. Starting: 50000. Ending: 60018.
STYLE
| Model No. | Body | Style | Seating | Price |
|---|---|---|---|---|
| "Thirty" | 2-dr. | Touring | 5P | $1700 |
| "Thirty" | 2-dr. | Demi-Tonneau | 4P | $1700 |
| "Thirty" | 3-dr. | Foredoor Touring | 5P | $1800 |
| "Thirty" | 3-dr. | Torpedo | 4P | $1850 |
| "Thirty" | - | Roadster | 2P | $1700 |
| "Thirty" | - | Roadster | 3P | $1700 |
| "Thirty" | 2-dr. | Limousine | 7P | $3000 |
| "Thirty" | 2-dr. | Coupe | 3P | $2250 |
Click to supersize

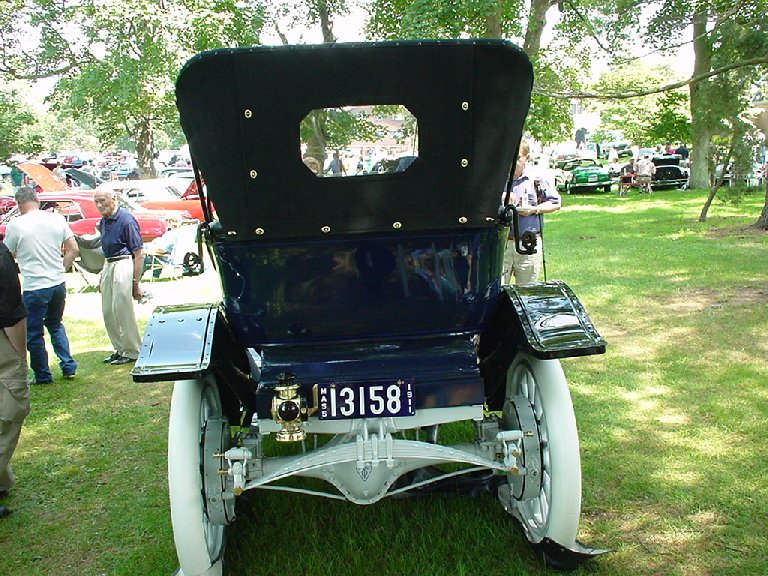

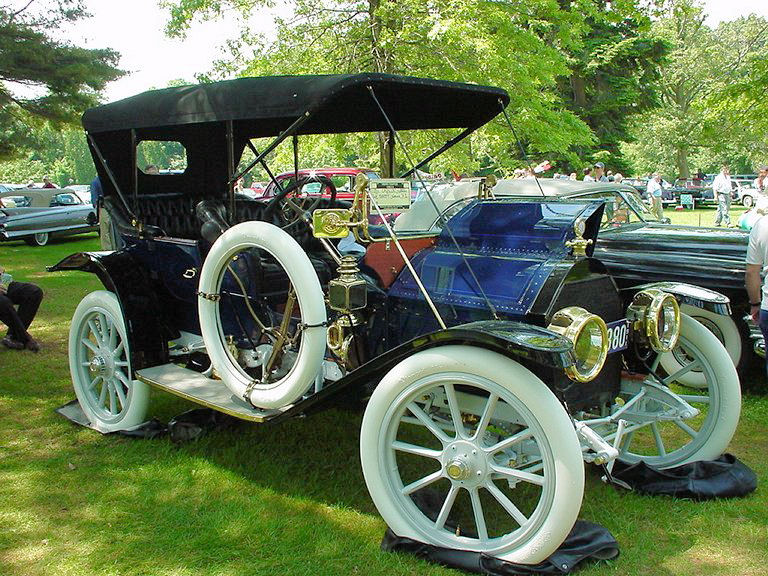

1911 Cadillac Model Thirty Demi Tonneau
Click to supersize

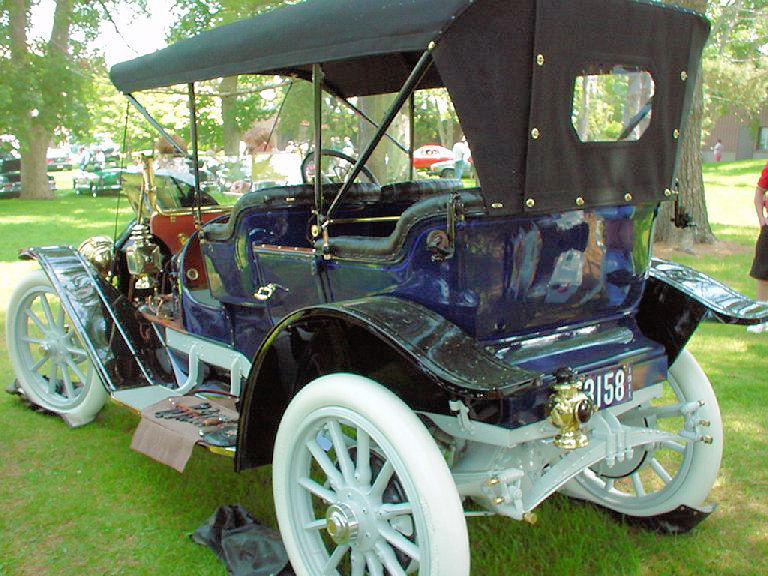

1911 Cadillac Model Thirty Demi Tonneau
Click to supersize
1911 Cadillac Model Thirty Demi Tonneau
Click to supersize
1911 Cadillac Model Thirty Demi Tonneau
ENGINE
Click to supersize

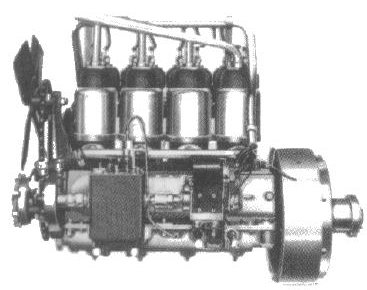

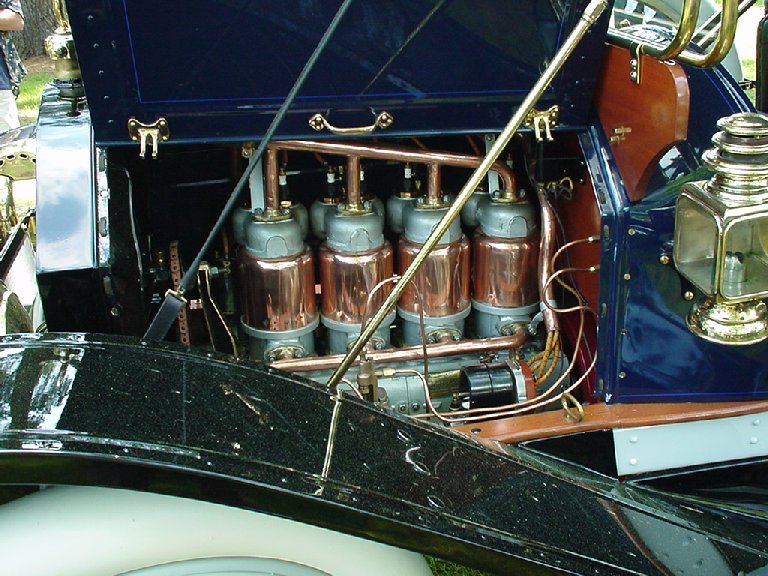

1911 Cadillac Thirty engine
| Description | Vertical, in-line, L-head. Four cylinders. Individual cast iron cylinder, copper water jacket |
| Bore & Stroke | 114.3mm x 114.3mm |
| Displacement | 4.693 Liters |
| Horsepower | A.L.A.M. H.P.: 32.4 |
| Main bearings | Five |
| Valve lifters | Mechanical -- push rod -- roller cam followers |
| Carburetor | Float feed; Schebler Model L |
CHASSIS
| Wheelbase | 2946mm |
| Front/Rear Tread | 1422mm; optional 1549mm |
| Tires | 34" x 4" (Limousine 36" x 4.5") |
DRIVETRAIN

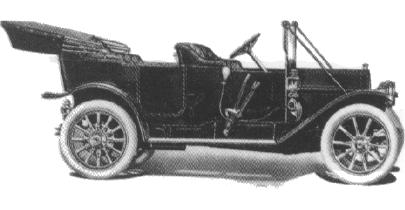

1911 Cadillac Model Thirty
| Transmission | Selective, sliding gear transmission |
| Speeds | 3 Forward/1 Reverse |
| Control Position | Right hand drive, controls to right |
| Clutch | Leather faced cone clutch |
| Drive | Shaft |
| Axle | Full floating rear axle |
| Differential | bevel drive, bevel gear differential |
| Overall ratio | 3.43:1 (roadster 3.05:1, limo. 3.66:1) |
| Brakes | Mech. brakes on two wheels -- Service / foot / contracting -- emergency / lever / expanding |
| Wheels | Wood artillery wheels, 10 & 12 spoke, quick detachable rims |
| Wheel size | 26 in. (Limo. 27 in.) |
| Optional Final drive ratios | 3.43:1, 3.66:1 |
OPTIONS
Click to supersize

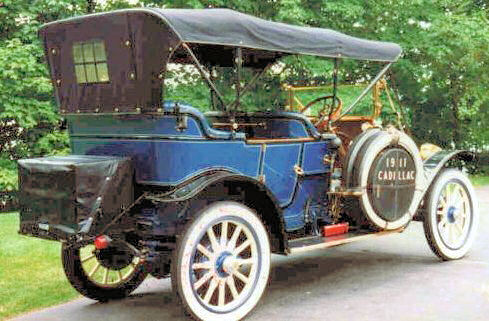

1911 Cadillac Touring
| Seat covers | $40.00-60.00 |
| Mohair tops | $65.00-90.00 |
| Prest-o-lite style B tank | $25.00 |
| Windshield | $40.00 |
| Jones electric horn, with storage battery | $40.00 |
HISTORICAL NOTES
1911 Cadillac Notes
- Introduced August, 1910.
- Model year sales: 10018.
- Henry M. Leland was president and general manager
- Frank Johnson was chief engineer
Click to supersize

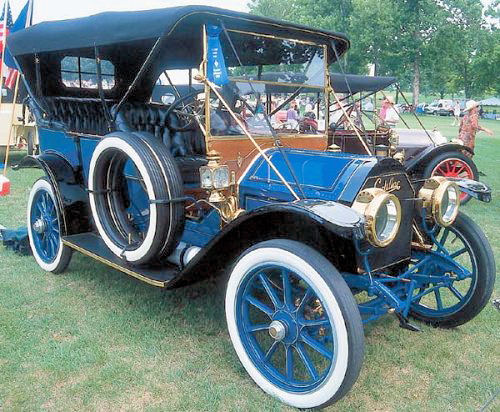

1911 Cadillac Touring
Click to supersize

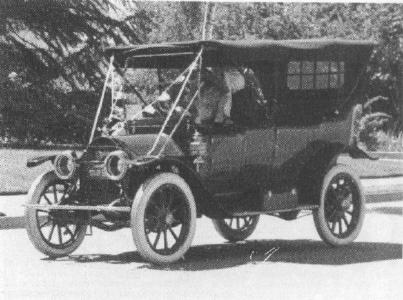

1911 Cadillac
