Same as 1912 except
Click to supersize

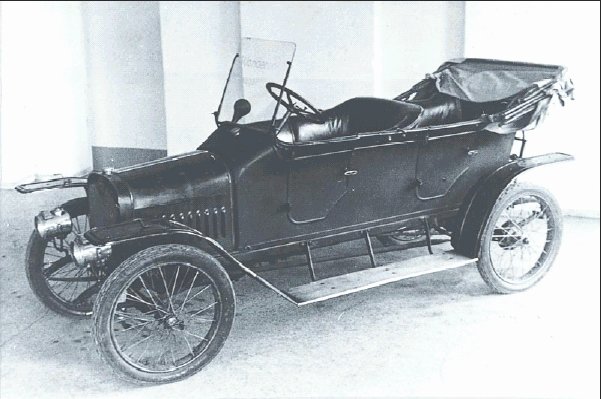

1913 Cadillac
Price
- Basic price increased to $1975.
Bodies
- Smoother, more integrated appearance.
- All controls inside.
- Cowls on all bodies except Coupe.
- Reverse curve in front fenders.
- Top and windshield standard equipment.
- Sidelight wiring concealed.
Chassis
- Wheelbase lengthened to 3048mm
Drive line
- No significant change.
Engine
- Major changes in lower end.
- Stroke increased to 146mm
- Main bearings now in upper half of crankcase - lower half becomes an oil pan.
- Camshaft and accessory shaft chain driven.
- Engine mounting points moved to top of crankcase.
- Engine suspended from arched cross members.
- Valve stems enclosed.
- Starter/generator simplified (six volt only) and more compact.
- Ring governor used once more; but for spark control, not speed control.
- Engine driven tire pump optional.
I.D. DATA
Click to supersize

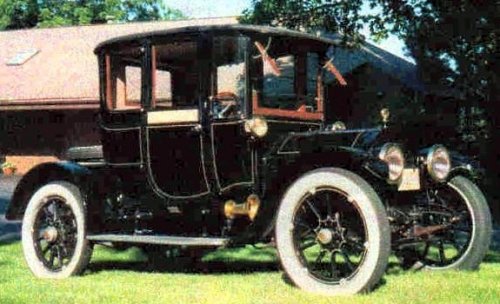

1913 Cadillac
If serial numbers were used, they could be found on plate on the dash (with engine no.). Engine numbers were stamped on top surface of crankcase -- in front of and to the left of number one (front) cylinder. Starting: 75001. Ending: 90018.
STYLE
Click to supersize

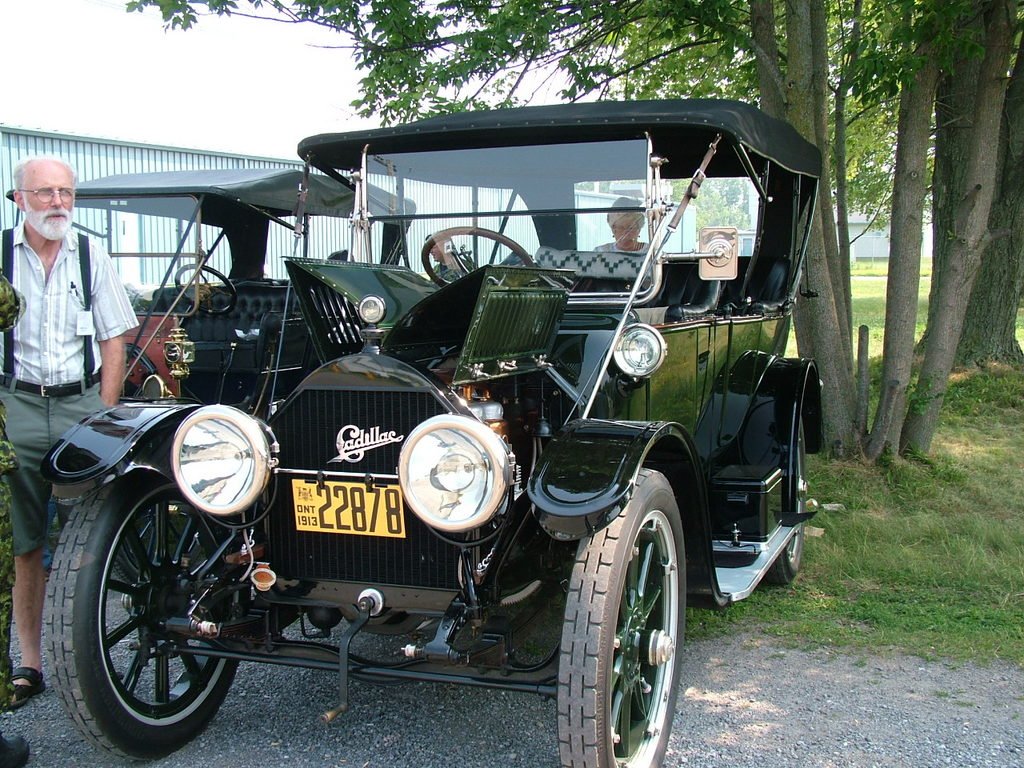

1913 Cadillac
| Model Number | Body | Series | Passengers | Price |
|---|---|---|---|---|
| N/A | 4-dr. | Touring | 5 | $1975 |
| N/A | 4-dr. | Torpedo | 4 | $1975 |
| N/A | 4-dr. | Touring | 6 | $2075 |
| N/A | 4-dr. | Phaeton | 4 | $1975 |
| N/A | 2-dr. | Roadster | 2 | $1975 |
| N/A | 4-dr. | Limousine | 7 | $3250 |
| N/A | 2-dr. | Coupe | 4 | $2500 |
ENGINE
Click to supersize

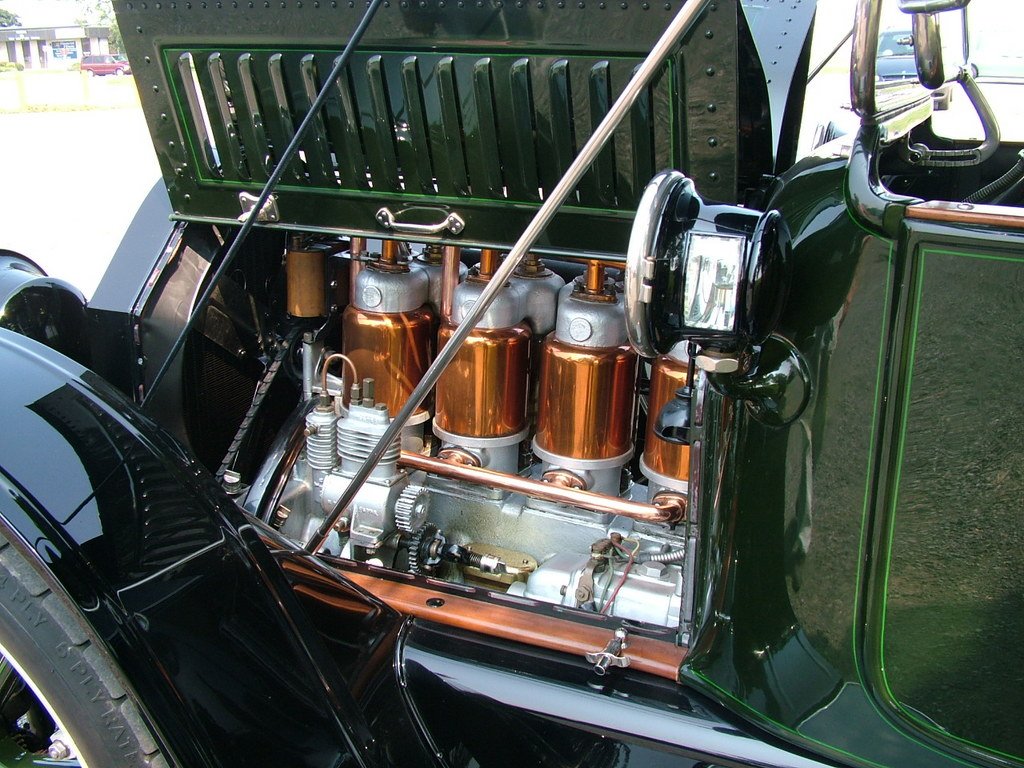

1913 Cadillac engine
submitted by Bob Willis
| Description | Vertical, in-line, L-head. Four cylinder. Individual cast iron cylinders, copper water jacket |
| Bore & Stroke | 114.3mm x 146.1mm |
| Displacement | 5.997 Liters |
| Brake Horsepower | 40-50 A.L.A.M. H.P.: 32.4 |
| Main bearings | Five |
| Valve lifters | Mechanical -- push rod -- roller cam followers |
| Carburetor | float feed; Made by Cadillac to C. F. Johnson patents |
CHASSIS
Click to supersize

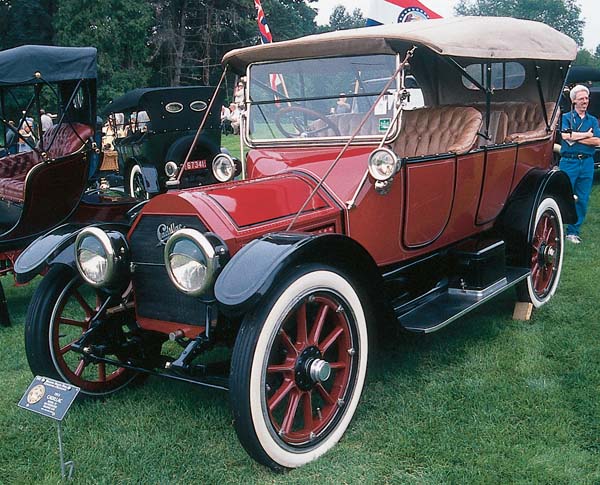

1913 Cadillac
| Wheelbase | 3048mm |
| Front/Rear Tread | 1422mm; optional: 1549mm |
| Tires | 36 x 4-1/2 |
DRIVETRAIN
Click to supersize

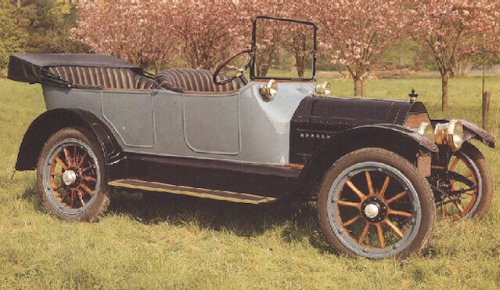

1913 Cadillac Model 30
| Transmission | Selective, sliding gear transmission |
| Speeds | 3 Forward and one Reverse |
| Steering position | Right hand drive, controls to right |
| Clutch | Leather faced cone clutch |
| Drive | Shaft drive |
| Axle | Full floating rear axle |
| Differential | bevel drive, bevel gear differential |
| Overall ratio | 3.43:1 (Roadster 3.05:1, Limo. 3.66:1) |
| Brakes | Mech. brakes on two wheels -- service / foot / contracting -- emerg. / lever / expanding |
| Wheels | Wood artillery wheels, 10 & 12 spoke, demountable rims |
| Wheel size | 27 in. |
| Optional Final drive ratios | 3.43:1, 3.66:1, 3.92:1 |
OPTIONS
Click to supersize
1913 Cadillac
submitted by Bob Willis
| Front bumper | $15.00 |
| Clock | $35.00 |
| Seat covers | $32.50 - 65.00 |
| Running board trunk | $33.00 |
| Tire Trunk | $16.50 |
| Electric horn | $25.00 |
| Power tire pump | $25.00 |
| Handy lamp | $2.00 |
| Weed chains | $8.00 |
HISTORICAL NOTES
1913 Cadillac Notes
- Introduced August, 1912.
- Model year sales: 15,018.
- Henry M. Leland was president and general manager
- Frank Johnson was chief engineer
- Earl C. Howard was general sales manager
- Cadillac earns its second Dewar Trophy for the electric starter
- "Standard of the World" first used in the fall of 1912, in ads for the 1913 cars.
